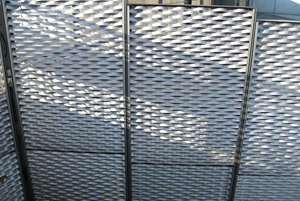

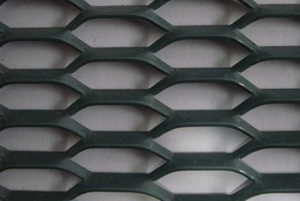

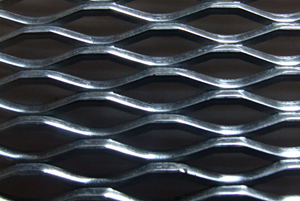

Expanded Metal

Material: Carbon Steel, Galvanized Steel, Stainless Steel, Aluminum.
Variety: small, medium and heavy expanded metal mesh.
Pattern: Opening in the shape of diamond, hexagonal or special shape.
Features: The expanded metal mesh is strong and durable, with pleasing appearance in its shapes.

Applications: Mainly used in building cement, mechanical equipment protection, crafts manufacturing, high grade sound box nets, expressway fence, stadium fence, road fence etd.

Expanded metal mesh at length from 600-4000mm and width from 600-2000m.

L.W.M.	S.W.M.	Strand Width	Strand Gauge	Approx. Kg/M2
6.05	3.38	0.8	0.5	2.1
10.24	5.84	0.8	0.5	1.2
10.24	5.84	1.2	0.9	3.2
14.27	5.84	1.2	0.9	3.2
19.05	7.42	1.2	0.9	3.4
5.8	3.5	0.8	0.6	2.1
19	7.4	1.7	1	3.4
30.5	11.7	2.4	1.6	4.9
30.5	11.7	2.4	1.2	3.8
38	16.5	2.2	1.6	3.4
50.8	22.5	2.5	2.5	4.4
50.8	22.5	3	1.6	3.4
50.8	22.5	3.9	3	8.1
50.8	22.5	3.1	3	6.5
76.2	33.9	3.5	3	4.9
85.7	40.6	3.2	3	3.7
101.6	50.8	5	3	4.7
101.6	50.8	3.4	3	3.1
114.3	39.3	4.6	3	5.4
200	75	6.3	3	3.6
