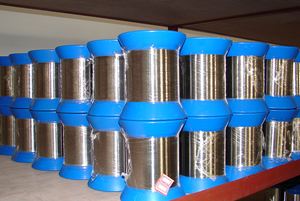

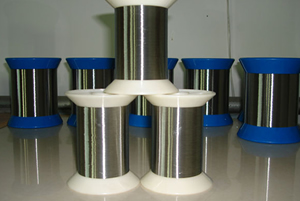

Stainless Steel Wire

Material: 304 304L 316 316L

Sizes: Wire diameter range from 5mm to 0.025mm

Applications: Redrawing of wire, weaving of wire mesh, making of soft pipes, steel ropes, filter elements, braided wire, spring, etc..

Variety: Hard wire, soft wire, coil wire, spool wire

Wire Diameter (mm)	Allowed Difference (mm)	Max. Diameter Difference (mm)
0.020-0.049	+0.002 -0.001	0.001
0.050-0.074	±0.002	0.002
0.075-0.089	±0.002	0.002
0.090-0.109	+0.003 -0.002	0.002
0.110-0.169	±0.003	0.003
0.170-0.184	±0.004	0.004
0.185-0.199	±0.004	0.004
0.200-0.299	±0.005	0.005
0.300-0.310	±0.006	0.006
0.320-0.499	±0.006	0.006
